ZUMEX 38
Orange Coast Foods, Inc.

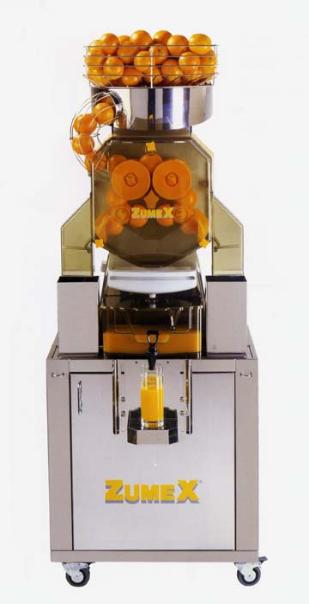

Zumex Model 38
High Production
Squeezes "quarts" in seconds


Specifications:
Z38 MODEL with Juice Reservoir & Stand
Recommended for High production

Production: 38 Oranges Per Minute

7 quart juice reservoir & faucet
*Automatic reservoir shut-off, (float
activated)

Fruit Size: up to 88's (81 mm)/(3.19 in.)
(Best sizes 138 & 113's)

Automatic Feeding (turning) Plate
Hopper capacity = 35 Lbs.

Width = 26.77"
Height = 69.29"
Deep = 28.35"
Weight = 222 Lbs.
Shipping Weight = 278 Lbs.

Motor = Single Phase 0.4 cv
Consumption = 280 w.
115v/60 Hz.
Protected by cut-out switch for blocked
motor
Humidity Protection Ipx4.

Safety:  Magnetic Shut off Switch

Front polycarbonate Cover
Juice Tray and filter on machine
Modular Squeezing Parts
Detachable blade with safety handle
Stainless Steel Front Panel
Easy to Dismantle for cleaning

Cart Specifications:
Stainless Steel Construction
Stainless Steel adjustable Drip Tray on
Door

Interior hopper and waste bucket
Swivel casters with brakes

NSF and UL Approved
Full 1 year Warranty
Orange Coast Foods, Inc.
